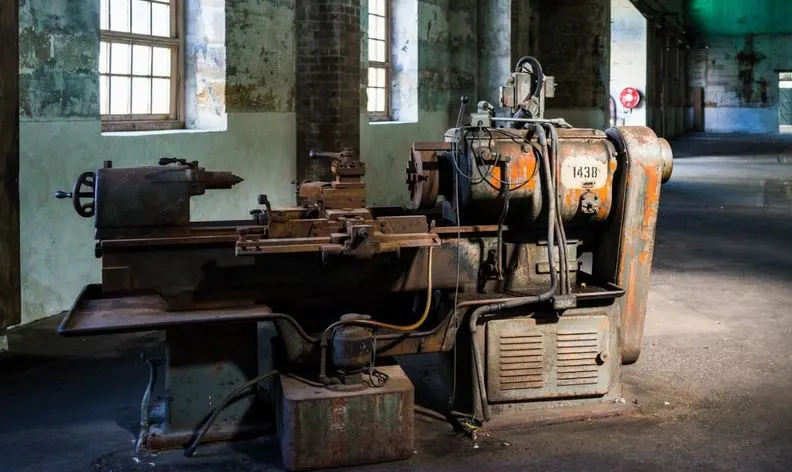

Manual lathe machines remain fundamental tools in machining operations, providing precise control over material removal and shaping processes. These versatile machines enable machinists to create cylindrical components, threads, and complex geometries through the controlled rotation of workpieces against cutting tools. Understanding proper manual lathe machine operation steps is essential for producing high-quality parts while maintaining safe working conditions.
Despite the prevalence of CNC technology, manual lathes continue to serve critical roles in prototype development, repair work, and small-batch production. The skills acquired through manual lathe operation provide machinists with fundamental understanding of cutting mechanics, tool behavior, and material properties that enhance overall machining competency.
This comprehensive guide covers essential aspects of manual lathe operation, from safety protocols to advanced cutting techniques. Whether you are a student beginning your machining education or a professional seeking to refine your manual lathe skills, this resource provides practical knowledge for safe and effective machine operation.
Essential Lathe Machine Safety Precautions
Safety must be the primary consideration when operating any manual lathe machine. The rotating spindle, cutting tools, and material chips present significant hazards that require strict adherence to established safety protocols.
Personal Protective Equipment Requirements
Proper personal protective equipment (PPE) forms the first line of defense against machining hazards. Safety glasses or face shields protect eyes from flying chips and cutting fluid splashes. Close-fitting clothing prevents entanglement with rotating components, while steel-toed safety shoes protect feet from falling workpieces or tools.
Remove all jewelry, watches, and loose clothing before machine operation. Tie back long hair and avoid wearing gloves when operating the lathe, as these items can become caught in rotating machinery and cause severe injuries.
Machine Area Safety Protocols
Maintain a clean and organized work environment around the lathe. Remove chips regularly using appropriate brushes or chip hooks—never use compressed air or hands to clear chips while the machine is running. Ensure adequate lighting illuminates the work area and cutting tool interface.
Verify that all guards and safety devices are properly installed and functional before beginning operations. Check that emergency stops are accessible and operational. Keep the floor area around the lathe free from oil, chips, and other slip hazards.
baca juga : Types of Lathe Machines
Pre-Operation Safety Checks
Before starting the lathe, conduct a thorough inspection of all machine components. Verify that the chuck jaws are properly tightened and that workpiece clamping is secure. Check that cutting tools are properly secured in the tool post and that the tailstock is locked in position when required.
Confirm that all adjustments and settings are appropriate for the planned operation. Verify spindle speed settings, feed rates, and cutting tool geometry before engaging the spindle drive.
Understanding Lathe Machine Parts and Functions
Comprehensive knowledge of lathe machine components is essential for effective operation and maintenance. Each component serves specific functions in the material removal process, and understanding these relationships enables optimal machine utilization.
Primary Structural Components
The lathe bed provides the foundation for all machine operations, supporting the headstock, tailstock, and carriage assembly. The bed’s precision-ground ways ensure accurate linear movement of the carriage and tailstock components. Proper bed maintenance and protection from damage are critical for maintaining machining accuracy.
The headstock contains the main spindle assembly, drive mechanisms, and speed change components. The spindle rotation provides the primary cutting motion, while the headstock gearing system enables speed selection appropriate for different materials and cutting operations.
Workholding and Support Systems
The chuck assembly provides primary workholding for most turning operations. Three-jaw and four-jaw chucks serve different applications, with three-jaw chucks offering quick setup for round stock and four-jaw chucks providing independent jaw adjustment for irregular shapes or precise centering requirements.
The tailstock supports long workpieces and provides mounting for drill chucks, centers, and other accessories. Proper tailstock alignment and secure locking prevent workpiece deflection and maintain dimensional accuracy during machining operations.
Tool Control and Feed Systems
The compound rest enables angular tool positioning and provides precise manual feed control for facing and tapering operations. The compound rest graduation markings allow accurate depth measurements and consistent material removal rates.
The carriage assembly incorporates both longitudinal and cross-feed mechanisms, enabling controlled tool movement parallel and perpendicular to the spindle axis. Understanding feed system operation is crucial for achieving desired surface finishes and maintaining dimensional tolerances.
Step-by-Step Operating Procedures
Proper lathe operation follows systematic procedures that ensure consistent results and maintain safety standards. These manual lathe machine operation steps provide the framework for effective material removal while minimizing risks.
Machine Startup and Preparation
Begin by conducting the pre-operation safety inspection outlined previously. Verify that all emergency stops are functional and that safety guards are properly positioned. Check oil levels in the headstock and other lubrication points according to the manufacturer’s specifications.
Select appropriate spindle speeds based on workpiece material, diameter, and cutting tool specifications. Consult speed charts or calculations to determine optimal cutting speeds for the planned operations. Lower speeds are typically required for larger diameters and harder materials.
Workpiece Setup and Alignment
Proper workpiece setup is fundamental to achieving accurate machining results. When using a three-jaw chuck, insert the workpiece to the appropriate depth, ensuring sufficient material extends beyond the chuck face for the planned operations while maintaining adequate clamping engagement.
For four-jaw chuck applications, use a dial indicator to achieve precise centering. Mount the indicator on the carriage and adjust individual jaw positions to minimize runout. This process requires patience and systematic adjustment but provides superior accuracy for critical applications.
Lathe Tool Setting and Adjustments
Tool height adjustment is critical for proper cutting action and surface finish quality. Position the cutting tool tip at the spindle centerline height using appropriate tool holders and shims. Incorrect tool height results in poor surface finish, increased tool wear, and potential workpiece damage.
Secure the cutting tool firmly in the tool post, ensuring adequate support and rigidity. Position the tool with appropriate clearance angles and cutting geometry for the planned operation. Double-check tool security before beginning cutting operations.
Cutting Operation Execution
Engage the spindle at the selected speed and allow it to reach full operating velocity before initiating tool contact. Approach the workpiece gradually using manual feed controls, taking light initial cuts to verify setup accuracy and cutting parameters.
Maintain consistent feed rates throughout the cutting process, avoiding sudden changes that can cause surface finish problems or tool damage. Monitor cutting forces and adjust parameters if excessive vibration or unusual sounds occur during machining.
Advanced Turning and Threading on Lathe
Advanced lathe operations require refined technique and thorough understanding of cutting mechanics. These operations often demand precise tool control and systematic approaches to achieve professional results.
Precision Turning Techniques
Achieving tight dimensional tolerances requires careful attention to cutting parameters, tool condition, and machine stability. Use sharp cutting tools with appropriate geometry for the material being machined. Dull tools generate excessive heat and produce poor surface finishes.
Take successive cuts of decreasing depth as you approach final dimensions. This approach compensates for tool deflection and machine compliance while maintaining dimensional accuracy. Use precision measuring instruments to monitor progress and ensure specifications are met.
Threading Operations
Threading on a manual lathe requires engagement of the lead screw through the half-nut mechanism. The threading dial indicator shows proper engagement timing to ensure consistent thread pitch. Engage the half-nut only when the dial indicator shows the appropriate marks for the desired thread pitch.
Begin threading operations with very light cuts to establish proper thread form. Gradually increase cutting depth over successive passes until full thread depth is achieved. Maintain consistent spindle speed throughout the threading process to ensure uniform thread quality.
Specialized Cutting Applications
Taper turning requires either compound rest adjustment or tailstock offset depending on the taper angle and length requirements. Calculate the required settings accurately and verify setup before beginning cutting operations.
Form cutting using shaped tools enables production of complex profiles in single operations. Ensure adequate machine rigidity and proper tool support when performing form cutting operations, as these applications generate higher cutting forces than standard turning.
Maintenance and Care Procedures
Regular maintenance ensures continued accuracy and extends machine life. Preventive maintenance procedures should be performed according to established schedules and documented for future reference.
Daily Maintenance Tasks
Clean all machine surfaces and remove accumulated chips and debris at the end of each operating session. Pay particular attention to the ways and feed screw areas where chip accumulation can cause accelerated wear and loss of accuracy.
Check and maintain proper lubrication levels in all oil reservoirs. Manual lathes typically require regular attention to headstock lubrication, feed system oil levels, and way lubrication systems.
Periodic Inspection and Adjustment
Inspect cutting tools regularly for signs of wear, damage, or improper mounting. Replace or recondition tools as necessary to maintain cutting performance and surface finish quality. Properly maintained tools reduce machine stress and produce superior results.
Check machine alignment and accuracy using precision measurement tools. Verify spindle runout, tailstock alignment, and carriage movement accuracy according to manufacturer specifications. Address any deviations promptly to prevent accuracy degradation.
Mastering Manual Lathe Fundamentals
Manual lathe operation requires the integration of safety awareness, mechanical understanding, and skilled technique. The knowledge and procedures outlined in this guide provide the foundation for developing professional machining capabilities.
Regular practice with progressively challenging projects develops the manual dexterity and judgment required for advanced machining operations. The fundamental skills acquired through manual lathe operation enhance understanding of all machining processes and provide valuable background for CNC operations.
Continued learning through formal training programs, industry workshops, and hands-on experience ensures skill development keeps pace with evolving manufacturing requirements. The investment in manual lathe proficiency pays dividends throughout a machining career, providing versatile capabilities that remain relevant across diverse manufacturing applications.
